Discontinued Microinverter Accessories
APsystems YC600
1
2
3
4
5
1
YC600 AC Bus
- Provides the junction of the inverter’s AC output side and grid connection
- CSA/TUV certified
- 2,5mm2 (12AWG)，U-1000-RO2V ( TC-ER)
- 3-wire (includes internal ground)
- Drop length: 2M or 4M options
2

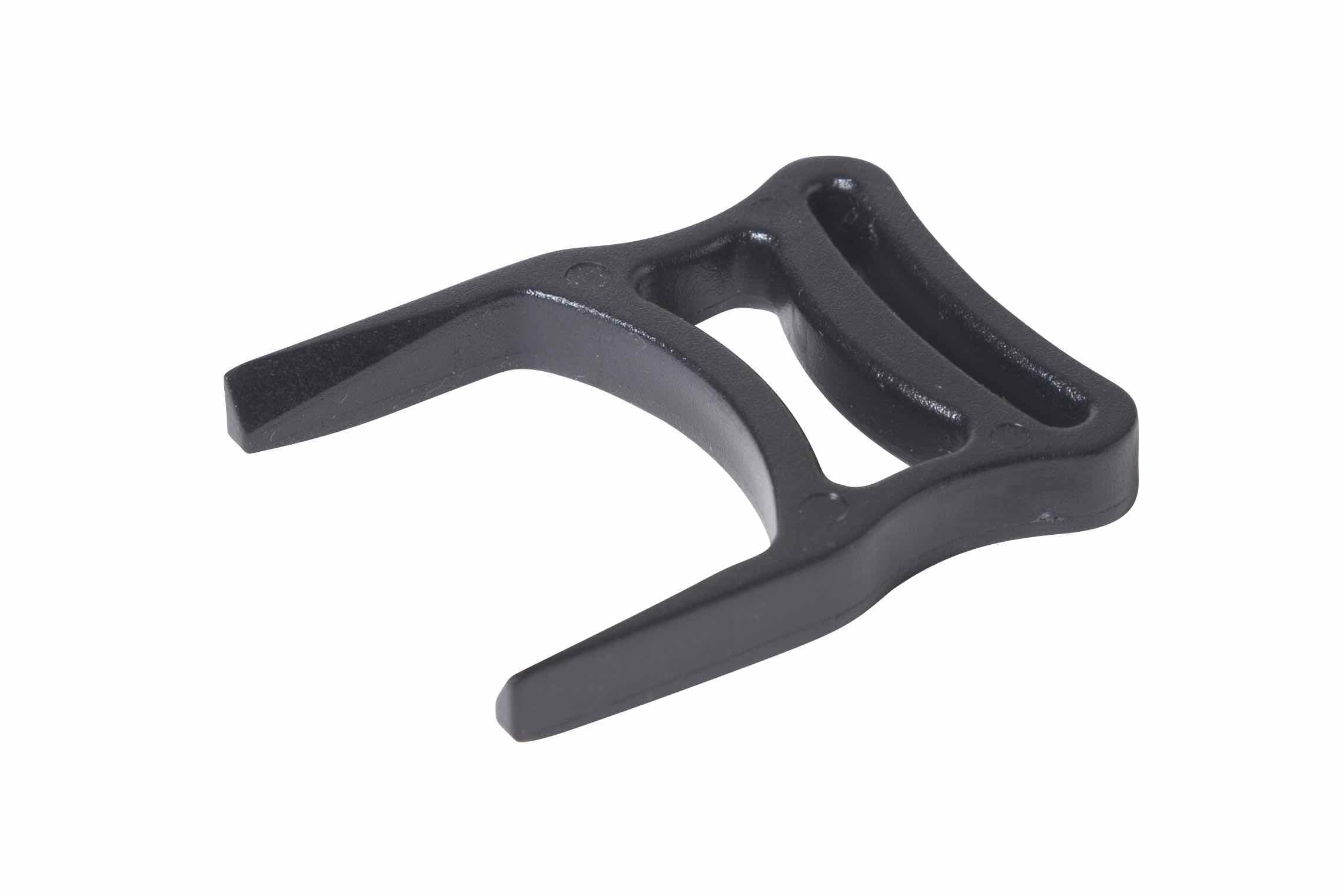

YC600 AC Connector Unlock Tool
- Unlocks the inverter and AC Bus
3
YC600AC Bus Y-CONN Cap
- Protects the unused Y-CONN on the AC Bus
4
YC600 AC Bus End Cap
- Provides water proof for the end of AC Bus
5

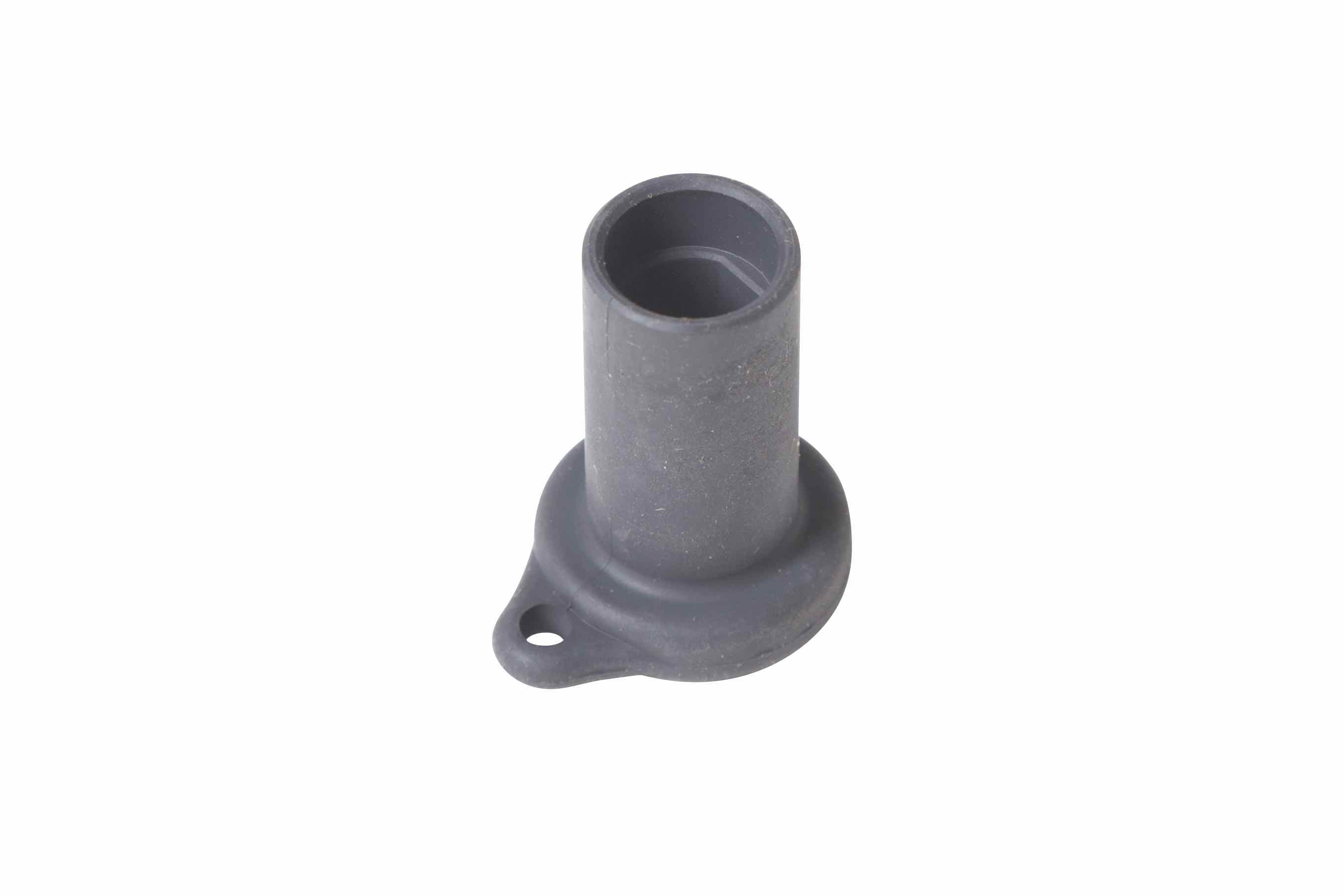

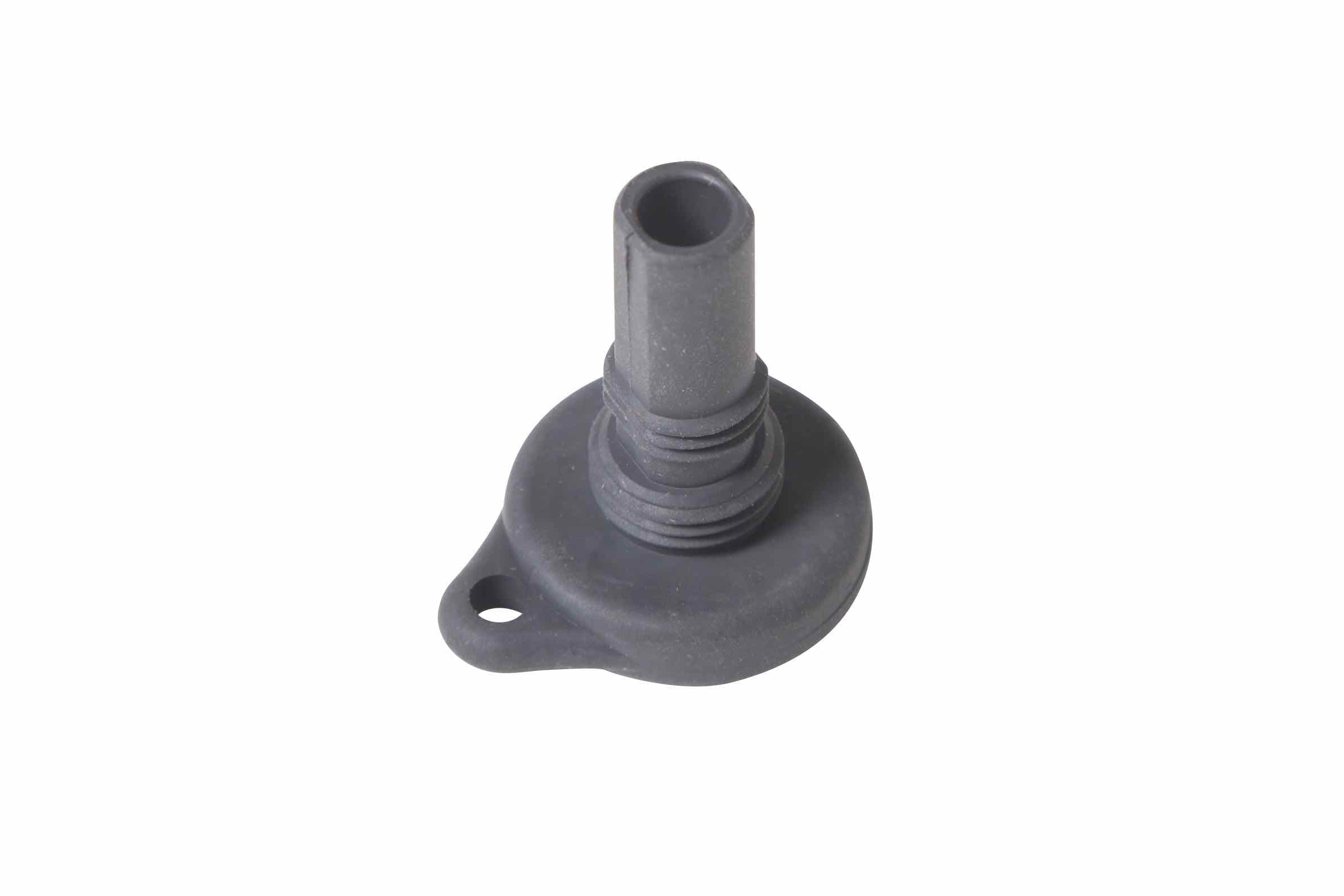

Pair of MC4 Caps (Male and Female)
Part No. MC4 Caps
- Female cap is used to cover and protect unused MC-4 male connector coming from second pair of YC600 DC connections.
- Male plug is used to protect unused MC-4 female connector in same application.
APsystems QS1
1
2
3
4
1
QS1 AC Bus
- Provides the junction of the inverter’s AC output side and grid connection
- CSA/TUV certified
- 2,5mm2 (12AWG)，U-1000-RO2V ( TC-ER)
- 3-wire (includes internal ground)
- Drop length: 2M or 4M options
2
QS1 AC Connector Unlock Tool
- Unlocks the inverter and AC Bus
3
QS1 Bus Y-CONN Cap
- Protects the unused Y-CONN on the AC Bus
4
QS1 AC Bus End Cap
- Provides water proof for the end of AC Bus
APsystems YC1000-3
1
2
3
1
YC1000-3 Trunk Cable
Part No. Cable-2 (for 2 meter trunk cable for portrait array orientation)
Part No. Cable-4 (for 4 meter trunk cable for landscape array orientation)
YC1000-3 Trunk cable. The 14 AWG cable is sold with two part unique part numbers – with connectors spaced at 2 meters or 4 meters. The varied spacing allows the YC1000-3, Model 208 or 480, to be installed in landscape or portrait.
2
Terminal Sealing Cap
- Applicable models：YC1000
- Locks on and seals contacts on an unused terminal on the YC 1000 Trunk Cable.
3

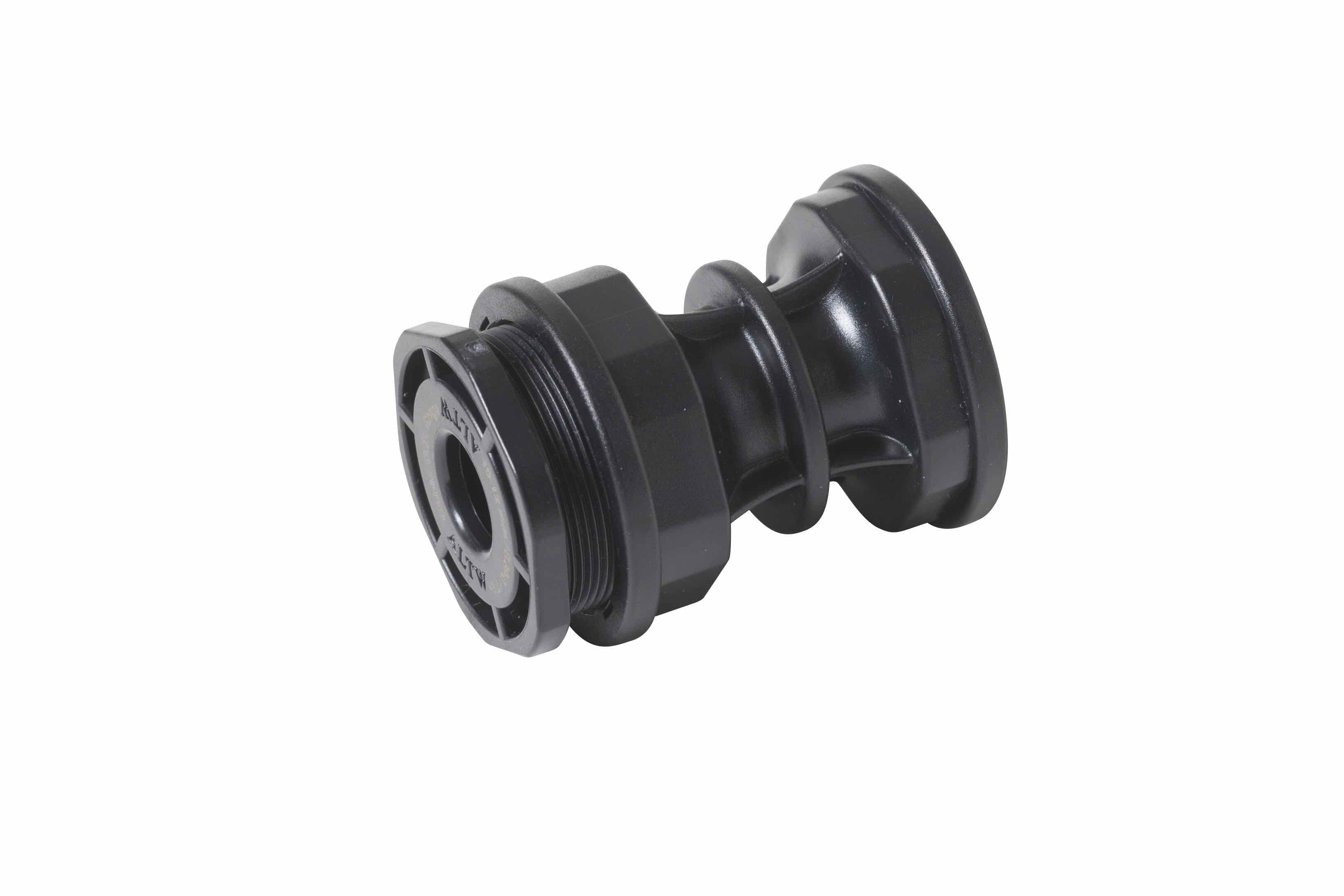

AC End Cap – YC1000
Part No. AC End Cap – YC1000
Terminates the bare wire on the Trunk Cable for the YC1000.
- Weather proof termination cap for the bare wire end of the YC1000 Trunk Cable.
- Insert five bare wires into five cable clamps to terminate
- 41 mm size
