APsystems Accessories

APsystems offers a range of accessories to ensure proper installation and function of our microinverter systems. See your installation manual or contact our technical support department to determine the proper, certified APsystems accessories for your application.

APsystems YC600

1
2
3
4
5
1

YC600 AC Bus

  • Provides the junction of the inverter’s AC output side and grid connection
  • CSA/TUV certified
  • 2,5mm2 (12AWG),U-1000-RO2V ( TC-ER)
  • 3-wire (includes internal ground)
  • Drop length: 2M or 4M options
2

YC600 AC Connector Unlock Tool

  • Unlocks the inverter and AC Bus
3

YC600AC Bus Y-CONN Cap

  • Protects the unused Y-CONN on the AC Bus
4

YC600 AC Bus End Cap

  • Provides water proof for the end of AC Bus
5

Pair of MC4 Caps (Male and Female)

Part No. MC4 Caps

  • Female cap is used to cover and protect unused MC-4 male connector coming from second pair of YC600 DC connections.
  • Male plug is used to protect unused MC-4 female connector in same application.

APsystems QS1

1
2
3
4
1

QS1 AC Bus

  • Provides the junction of the inverter’s AC output side and grid connection
  • CSA/TUV certified
  • 2,5mm2 (12AWG),U-1000-RO2V ( TC-ER)
  • 3-wire (includes internal ground)
  • Drop length: 2M or 4M options
2

QS1 AC Connector Unlock Tool

  • Unlocks the inverter and AC Bus
3

QS1 Bus Y-CONN Cap

  • Protects the unused Y-CONN on the AC Bus
4

QS1 AC Bus End Cap

  • Provides water proof for the end of AC Bus

APsystems YC1000-3

1
2
3
1

YC1000-3 Trunk Cable

Part No. Cable-2 (for 2 meter trunk cable for portrait array orientation)

Part No. Cable-4 (for 4 meter trunk cable for landscape array orientation)

YC1000-3 Trunk cable. The 14 AWG cable is sold with two part unique part numbers – with connectors spaced at 2 meters or 4 meters. The varied spacing allows the YC1000-3, Model 208 or 480, to be installed in landscape or portrait.

2

Terminal Sealing Cap

  • Applicable models:YC1000
  • Locks on and seals contacts on an unused terminal on the YC 1000 Trunk Cable.
3

AC End Cap – YC1000

Part No. AC End Cap – YC1000

Terminates the bare wire on the Trunk Cable for the YC1000.

  • Weather proof termination cap for the bare wire end of the YC1000 Trunk Cable.
  • Insert five bare wires into five cable clamps to terminate
  • 41 mm size

APsystems DC Extension Cable – For all models

1
1

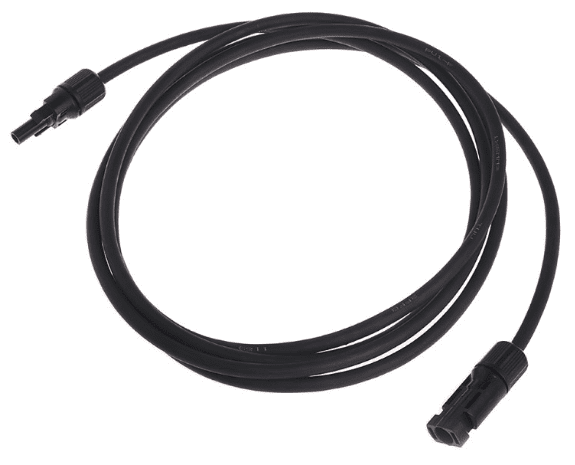

DC Extension Cable

Applicable models: All  |
2m DC extension cable with MC4 connectors for connecting microinverter to out of reach PV module.
